Pneumatske potapajuće pumpe

Membranske pumpe

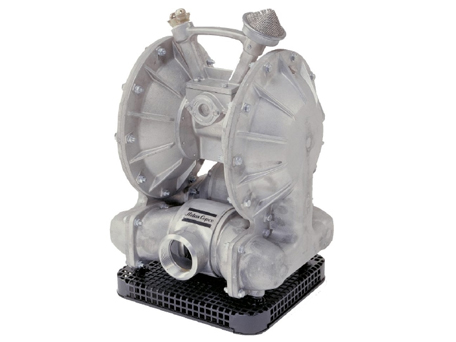

DOP 15F: Pneumatic diaphragm pump, max head 59 m (194 ft)

Technical Specifications
Height	585 mm
Length	390 mm
Width	330 mm
Max. head	59 m
Max. flow	7 l/s
Air consumption	34 l/s
Weight	31 kg
Fluid outlet thread	G 2 1/2
Fluid inlet thread	G 2 1/2
Air inlet	G 3/4
Air outlet	G 1
Sound power level guaranteed, Lw (2000/14/EC)*	104 dB(A)
Sound pressure level (ISO 11203)* Lp, r=1m	89 dB(A)



Za više informacija posetite sajt proizvođača



Centrifugalne pumpe

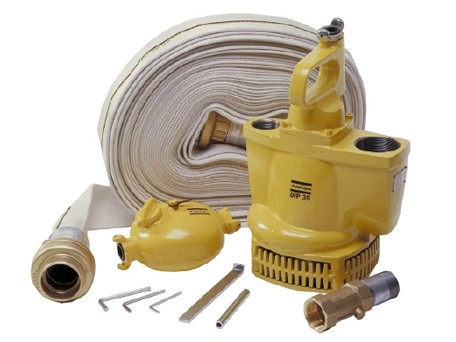

DIP 25: Pneumatic centrifugal pump, max head 25 m (82 ft). Kit

Technical Specifications
Height	435 mm
Length	235 mm
Width	288 mm
Max. head	25 m
Max. flow	28 l/s
Air consumption	70 l/s
Weight	23 kg
Fluid outlet thread	G 2 1/2
Air inlet	G 3/4
Air outlet	G 1 1/2
Sound power level guaranteed, Lw (2000/14/EC)*	117 dB(A)
Sound pressure level (ISO 11203)* Lp, r=1m	102 dB(A)





Za više informacija posetite sajt proizvođača
