Hidraulični čekići - SB – Mala serija

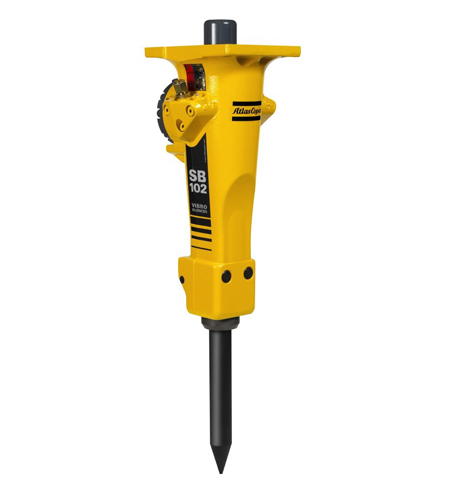

SB 102

Technical Specifications
Carrier weight class	1.1 - 3 t
Service weight **	90 kg
Oil flow	16 - 35 l/min
Operating pressure	100 - 150 bar
Impact rate	750 - 2300 blows/min
Working tool diameter	45 mm
Working length of tool	250 mm
Max. hydraulic input power	9 kW
Sound power level guaranteed	115 dB(A)
Sound pressure level (r=10m) ***	87 dB(A)

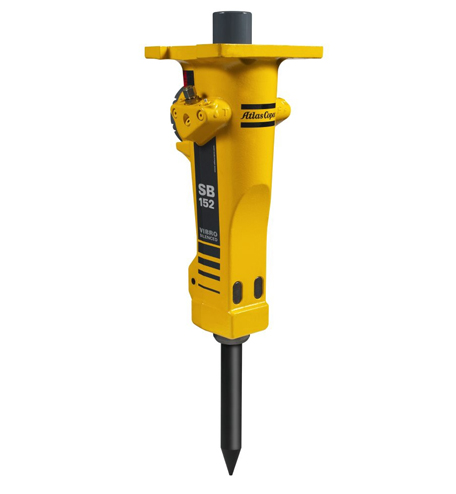

SB 152

Technical Specifications
Carrier weight class	1.9 - 4.5 t
Service weight **	140 kg
Oil flow	25 - 45 l/min
Operating pressure	100 - 150 bar
Impact rate	850 - 1900 blows/min
Working tool diameter	50 mm
Working length of tool	250 mm
Max. hydraulic input power	11 kW
Sound power level guaranteed	114 dB(A)
Sound pressure level (r=10m) ***	85 dB(A)

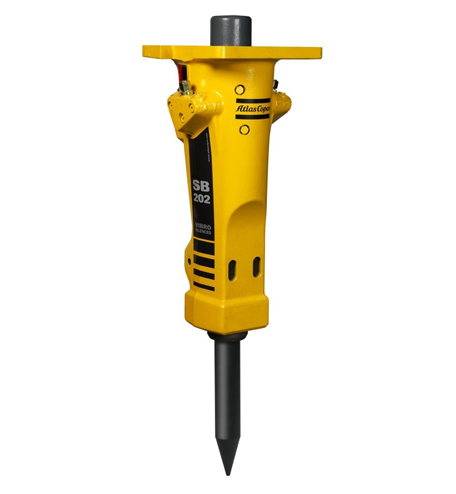

SB 202

Technical Specifications
Carrier weight class	2.5 - 6 t
Service weight **	200 kg
Oil flow	35 - 65 l/min
Operating pressure	100 - 150 bar
Impact rate	850 - 1800 blows/min
Working tool diameter	65 mm
Working length of tool	300 mm
Max. hydraulic input power	17 kW
Sound power level guaranteed	118 dB(A)
Sound pressure level (r=10m) ***	90 dB(A)

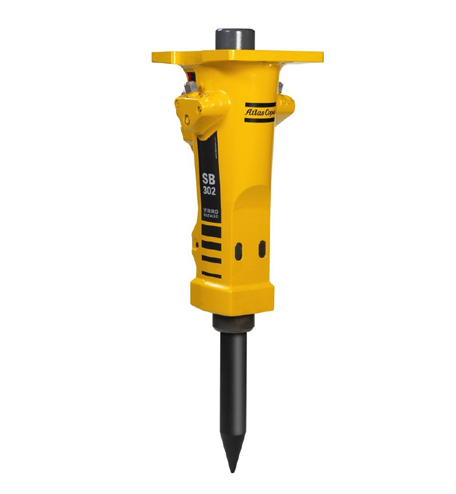

SB 302

Technical Specifications
Carrier weight class	4.5 - 9 t
Service weight **	300 kg
Oil flow	50 - 80 l/min
Operating pressure	100 - 150 bar
Impact rate	600 - 1400 blows/min
Working tool diameter	80 mm
Working length of tool	440 mm
Max. hydraulic input power	20 kW
Sound power level guaranteed	119 dB(A)
Sound pressure level (r=10m) ***	91 dB(A)

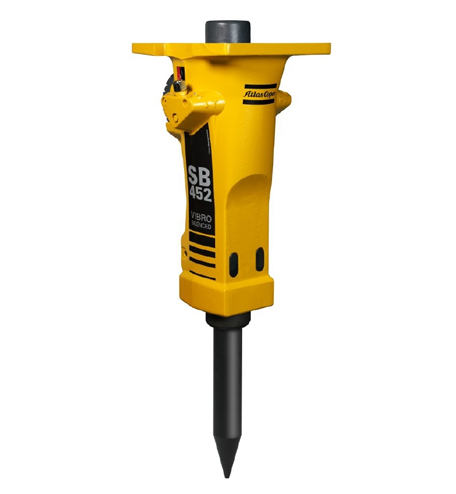

SB 452

Technical Specifications
Carrier weight class	6.5 - 13 t
Service weight **	440 kg
Oil flow	55 - 100 l/min
Operating pressure	100 - 150 bar
Impact rate	550 - 1250 blows/min
Working tool diameter	95 mm
Working length of tool	470 mm
Max. hydraulic input power	25 kW
Sound power level guaranteed	122 dB(A)
Sound pressure level (r=10m) ***	94 dB(A)

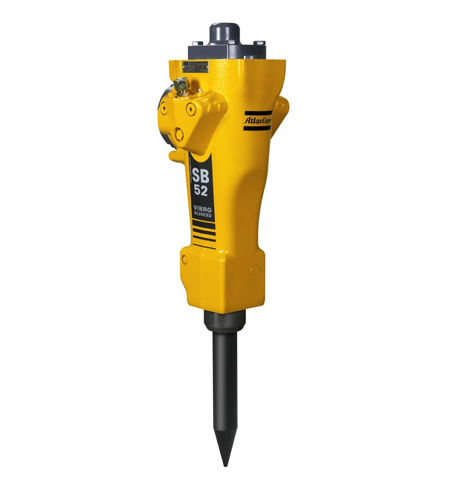

SB 52

Technical Specifications
Carrier weight class	0.7 - 1.1 t
Service weight **	55 kg
Oil flow	12 - 27 l/min
Operating pressure	100 - 150 bar
Impact rate	750 - 1700 blows/min
Working tool diameter	40 mm
Working length of tool	255 mm
Max. hydraulic input power	7 kW
Sound power level guaranteed	117 dB(A)
Sound pressure level (r=10m) ***	89 dB(A)

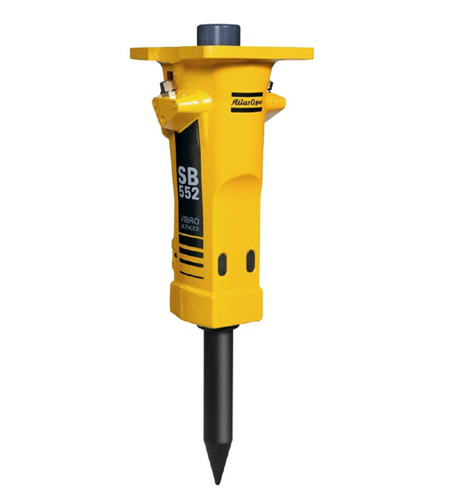

SB 552

Technical Specifications
Carrier weight class	9 - 15 t
Service weight **	520 kg
Oil flow	65 - 115 l/min
Operating pressure	100 - 150 bar
Impact rate	660 - 1150 blows/min
Working tool diameter	100 mm
Working length of tool	475 mm
Max. hydraulic input power	29 kW
Sound power level guaranteed	126 dB(A)
Sound pressure level (r=10m) ***	97 dB(A)

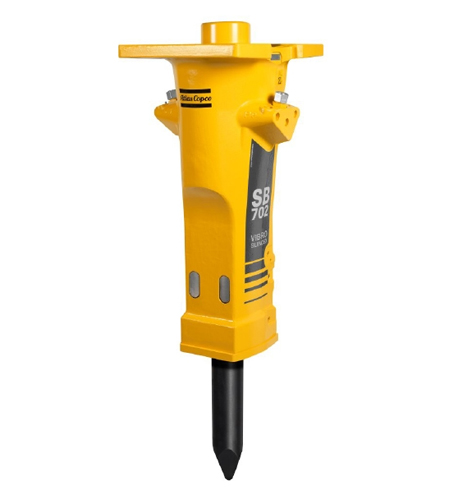

SB 702

Technical Specifications
Carrier weight class	10 - 17 t
Service weight **	720 kg
Oil flow	80 - 120 l/min
Operating pressure	120 - 170 bar
Impact rate	600 - 1050 blows/min
Working tool diameter	105 mm
Working length of tool	570 mm
Max. hydraulic input power	34 kW
Sound power level guaranteed	122 dB(A)
Sound pressure level (r=10m) ***	94 dB(A)
